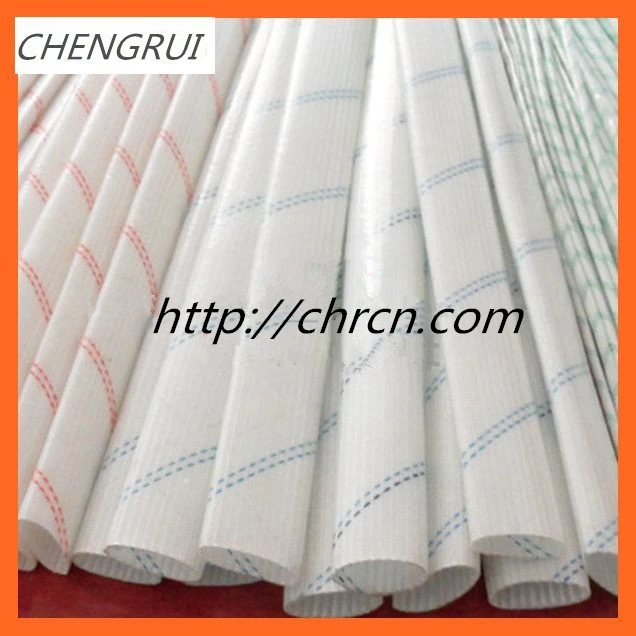

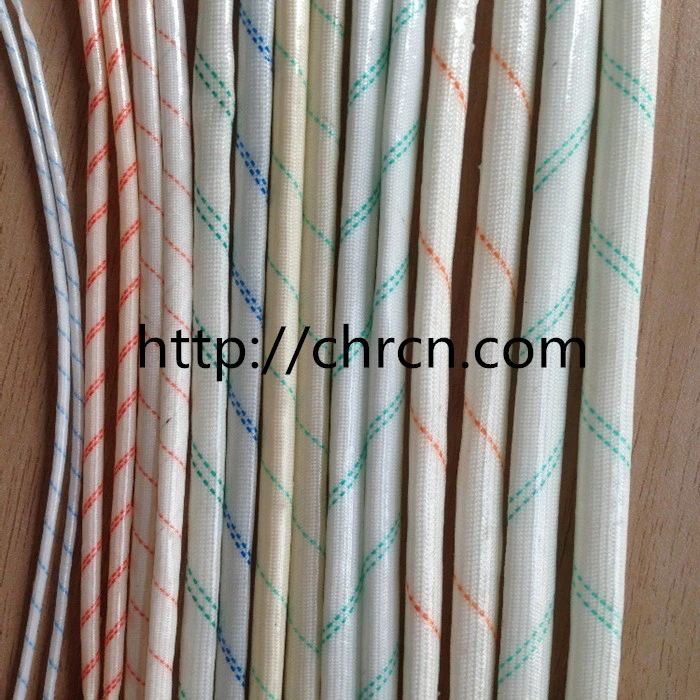

| Product Description: PVC Fiberglass Sleeving coating with PVC resin PVC Fiberglass Sleeving is braided with non-alkali fiberglass and coated with PVC resin. Properties: Rated temperature: 105ºC Breakdown voltage: 1500V; 2500V; 4000V Self-extinguish: Yes. Color: White. Other colors are available upon request. Length: 1 meter or continuous length Usages: Used as wiring insulation for A grade electrical machinery, domestic electrical appliances, electric apparatus and for protection of collected strands of wire. Specification:
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2715 Fiberglass insulation sleeving coated with polyvinyl Chloride resin
1 .Description: Electrical PVC fiberglass Insulation Sleeving is made from non-alkali fiberglass sleeving coated with polyvinyl chloride resin under the high temperature.
It is widely used as insulating and protection material for motor and electric appliance.
2.Specifications:
1).resistance temperature is 105°C
2).breakdown voltage:1.5kv 2.5kv 4.0 KV.
3).Diameter: 0.5-40 mm
4).Packing: 1meter or 50-100m/roll with carton or bag, can be according to customer's request
5).Color: red line, blue line and all kinds of color
| Model No. | Product Name | Components | Temp. Class | Features and Applications | |
| Basic Material | Impregnated Varnish | ||||
| 2715 | Polyvinyl chloride coated fiberglass sleeving | E-glass fiber braided sleeving | Modified polyvinyl chloride resin | A(105°C) | - Excellent softness, elasticity,dielectric properties and chemical resistance - As wiring insulation and mechanic protection for motor,electric instrument and radio equipment. |
