HVAC Systems PF Foil Acoustic Wall Panels

Aluminum Foil Laminated Phenolic BoardW.T Aluminium Foil Laminated Phenolic Foam Insulation Board is a new type of hight-tech composite insulation material. This product is composited by embossed aluminum foil and phenolic foam by special onetime continuous production line, with a sandwich structure. Two sides Non-woven fabric a

Featured Products

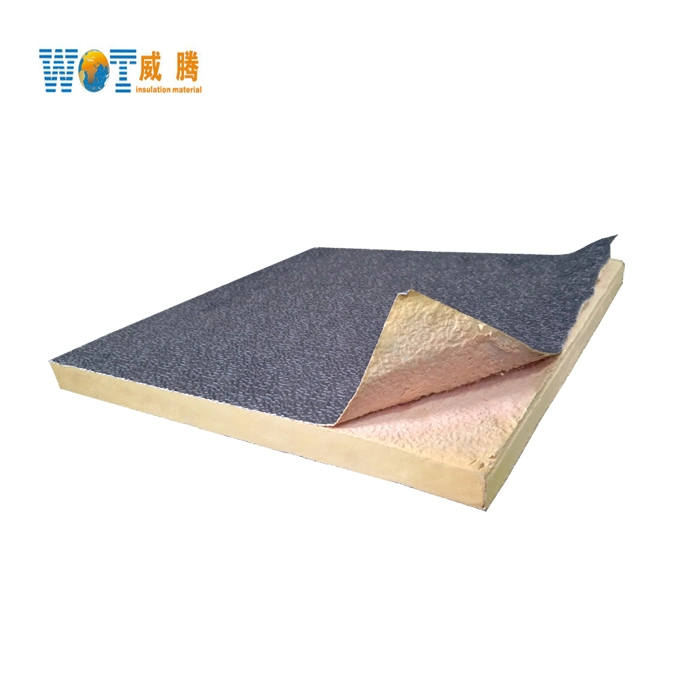

Aluminum Foil Laminated Phenolic Board

W.T Aluminium Foil Laminated Phenolic Foam Insulation Board is a new type of hight-tech composite insulation material. This product is composited by embossed aluminum foil and phenolic foam by special onetime continuous production line, with a sandwich structure. Two sides Non-woven fabric are special treatment, to ensure good bonding between layers. Phenolic foam insulation layer adopts advanced foaming technology with fine bubble and uniform density, strength and thermal insulation properties are guaranteed.


No.Inspection itemsTechnology index
1Conventional thickness20-150mm
2Length*Width: 2000*1200/3000*1200/4000*1200mm

3Fire rating Nonflammable B1 class
4Density of core material60-70kg/m3
5Water absorption≤3.7%
6Thermal conductivity0.024-0.034W/(mk)
7Heat resistance-150~+150ºC
8Wind resistance strength≤1500MPa
9Compression strength≥0.18MPa
10Bending strength≥1.1MPa
11Leakage air volume≤1.2%
12Thermal resistance0.86m2
13Smoke density≤9, No toxic gas release
14Dimension stability≤2%(70±2ºC, 48h)
15Oxygen index≥45
16Duration of fire resistance>1.5h
17Formaldehyde Emission≤0.5Mg/L
18Air flow max 15M/S
19Stress and deformationQualified


HVAC Systems PF Soundproof Wall Board with Aluminum Foil
HVAC Systems PF Soundproof Wall Board with Aluminum Foil
HVAC Systems PF Soundproof Wall Board with Aluminum Foil
HVAC Systems PF Soundproof Wall Board with Aluminum Foil
HVAC Systems PF Soundproof Wall Board with Aluminum Foil
